₱33,900.00

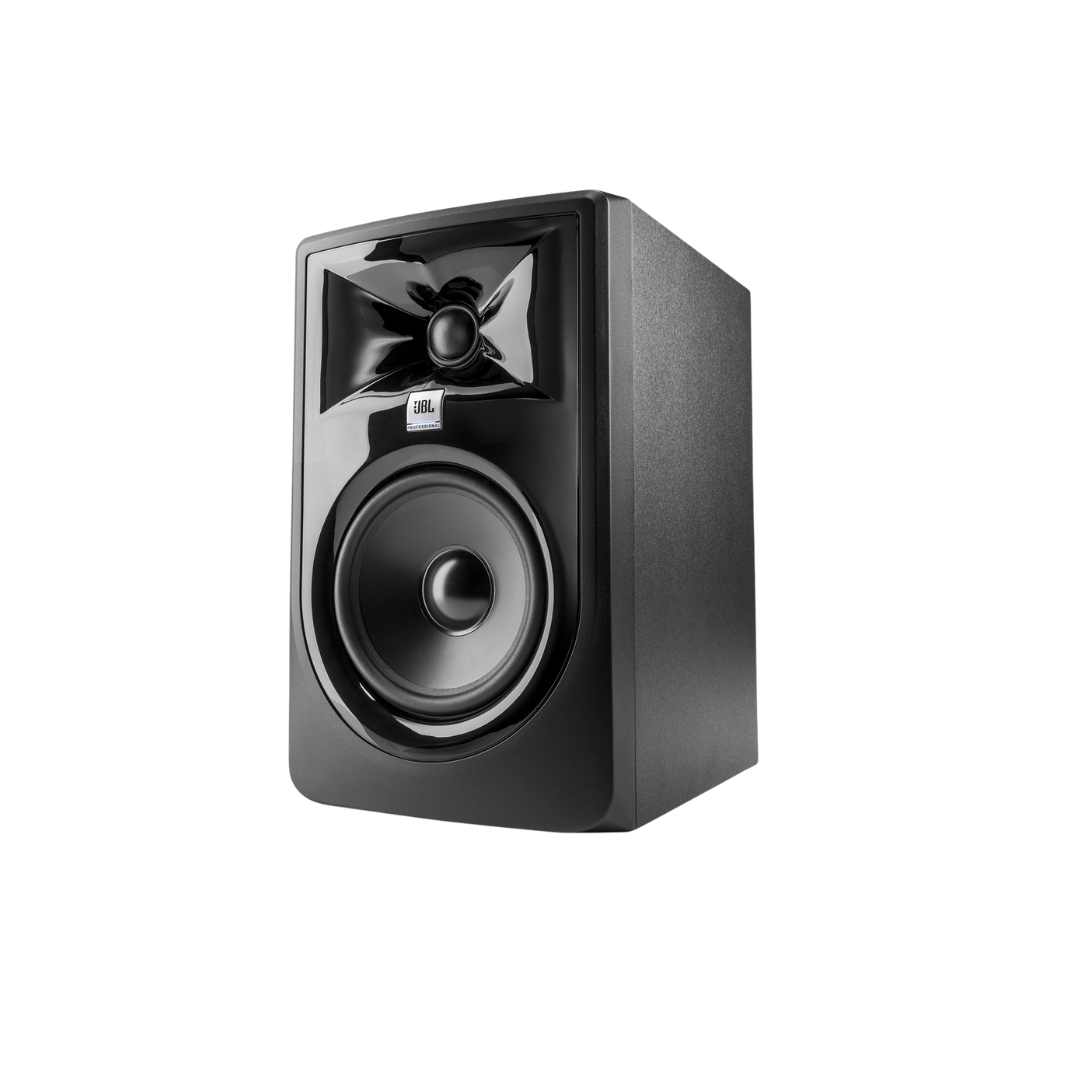

With the revolutionary JBL Image Control Waveguide and refined transducers, the JBL 305P MkII powered 5″ (12.7 cm) two-way studio monitor offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the critical listening capabilities of any modern workspace.
General Specifications
LF Driver Size 127 mm (5″)
HF Driver Size 25 mm (1″)
HF Driver Type Soft dome
Crossover 1725Hz 4th order acoustic Linkwitz-Riley
Power Configuration Bi-amplified
HF Driver Power Amp 41 W Class D
LF Driver Power Amp 41 W Class D
Frequency Response 49Hz – 20kHz (±3dB)
Frequency Range 43Hz – 20kHz (-10dB)
Low Frequency Extension 43Hz (-10dB)
Maximum Continuous SPL 94dB
Maximum Peak SPL 108dB
Maximum Peak Input Level +6dBV / +20.3dBu (-10dBV / +4dBu)
System Distortion Criteria <10% THD at maximum output with full compressor / limiter engagement
Electrical Distortion Criteria 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
Signal to Noise Ratio 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
Coverage Pattern 120° x 90° (horizontal x vertical)
HF Trim Control -2dB, 0dB, +2dB
Boundary EQ LF Shelf @ 50Hz
AC Input Voltage 100 – 240VAC (±10%), 50 / 60Hz
