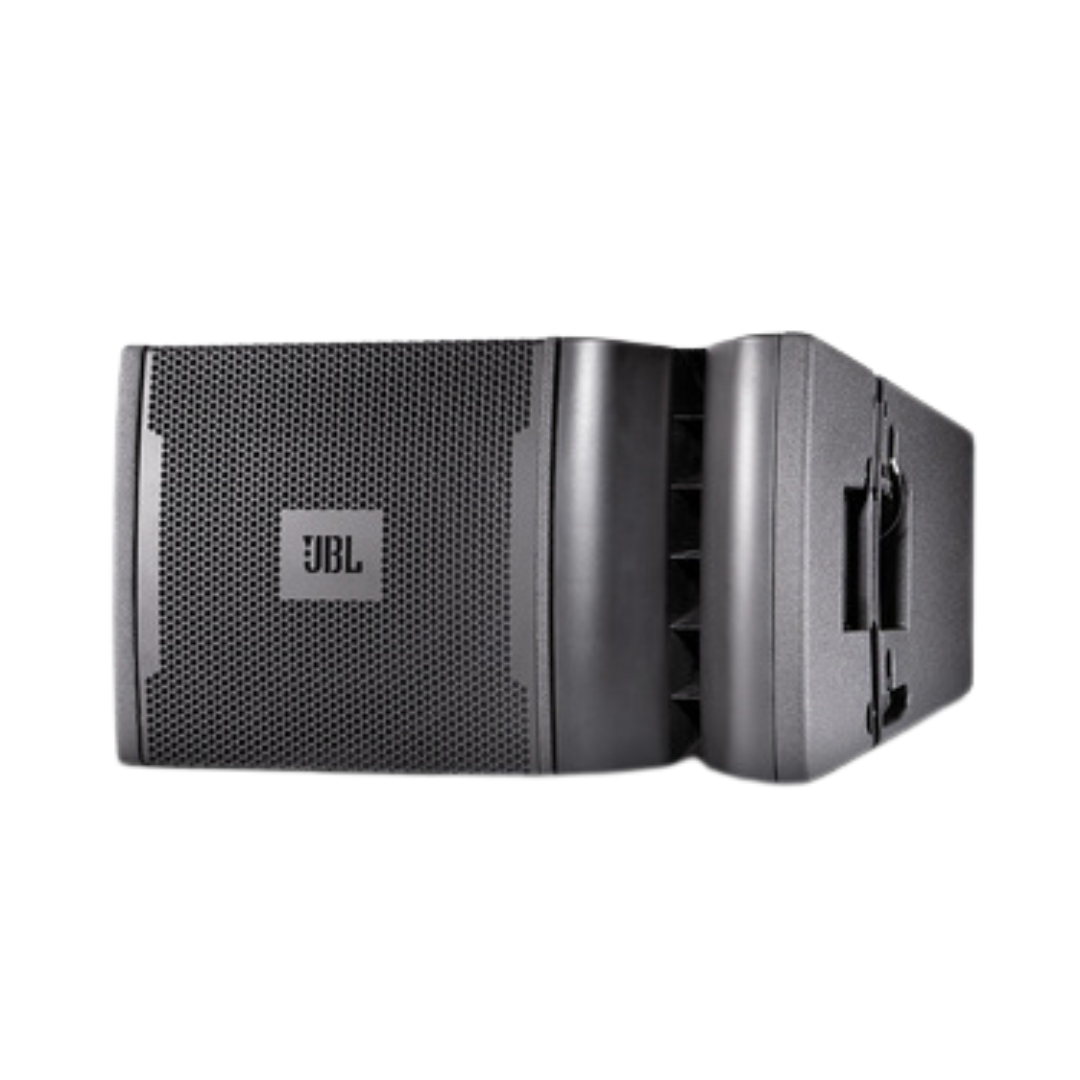

JBL VRX932LA-1 12 in. Two-Way Line Array Loudspeaker System

₱324,950.00

The VRX932LA-1 is a light-weight (46 lb / 21 kg) compact 12″ two-way line array speaker system designed for use in arrays of up to six units.

Features

JBL’s exclusive neodymium magnet Differential Drive® woofer for high-power capacity and light-weight.
VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
Constant Curvature waveguide for unprecedented array coherence.
Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or
tripod stand.
Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
Array Configuration Selector permits “array shading” in passive mode.

Specifications

Power Rating	800 W / 1600 W / 3200 W
Frequency Range (-10dB)	57 Hz – 20 kHz
Dimensions (H x W x D)	343mm x 597mm x 376mm (13.5in x 23.5in x 14.8in)
Frequency Response (±3 dB)	75 Hz – 20 Hz
Coverage Pattern	100 x 15 nominal
Crossover Modes	Bi-amp / passive, externally switchable
Crossover Frequency	132 dB SPL peak 1.2 kHz
Maximum SPL (1m)	130 dB SPL peak (passive mode) LF: 130 dB HF: 139 dB
Sensitivity	Passive: 95 dB SPL Bi-amp LF: 95 dB SPL Bi-amp HF: 114 dB SPL
LF Driver	1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps.
HF Driver	3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver
Nominal Impedance	Passive = 8 ohm Bi-amp LF = 8 ohm Bi-amp HF = 8 ohm
Active Tunings	Tunings available at www.jblpro.com
Enclosure	18 mm, 11-ply birch plywood
Suspension / Mounting	Optional VRX932LA-AF line array frame kit
Finish	Black DuraFlex™ finish
Grille	Power coated, black, 16-guage perforated steel with with acoustically transparent foam
Inputs	Neutrik® Speakon® NL-4 (x2)
Net Weight (each)	21 kg (46 lb)
Optional Accessories	VRX932LA-AF: Suspension array frame SS2-BK: Tripod speaker stand SS3-BK: Satellite speaker pole,41 in (1041 mm) SS4-BK: Adjustable satellite speaker pole to be used with the SRX718S only
Outputs	1 x XLR
System Type	Constant Curvature 12″ Two-Way Line Array System
